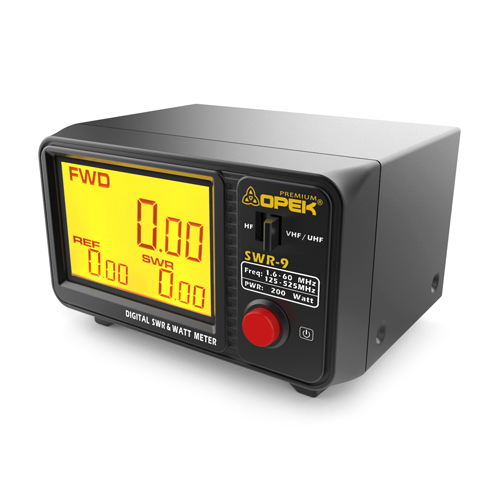

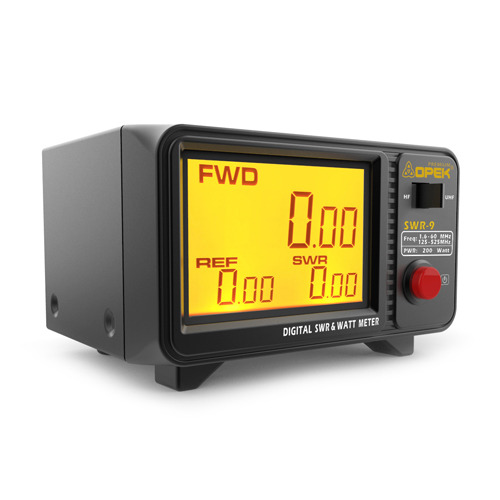

MODEL : SWR-9
High-performance OPEK Digital SWR & Watt Meter is a highly accurate measuring device for Forward Power,
Reflected Power, and VSWR.
Features:
- Large LCD (3.5″) display for easy reading
- Fwd/Ref Power/SWR ration in a push of a button
- LCD backlight display
- Convenient and simple control layout
- Packing gift box and DC 12V wire
Specifications:
| MODEL | SWR-9 |
| Frequency Range | 1.6-60 MHz / 125-525 MHz |
| Caibration Point | 14 MHz / 50 MHz / 145 MHz / 435 MHz |
| Power Range | 0 – 200W |
| Accuracy | ( +/- 5% ) |
| Minimum Power for SWR | 1W |
| Input / Output Connector | SO239 (N-Female Option) |
| Weight (Net) | 750g |
| Insertion Loss | Less than 0.1 dB |
| Testing Function | Fwd/Ref Power and VSWR Ratio |
| Input / Output Impedance | 50 Ohm |
| Dimmension (W/H/D) | 140mm x 84mm x 122mm |
| Accessories | Operation Manual, 12V DC Wire |
