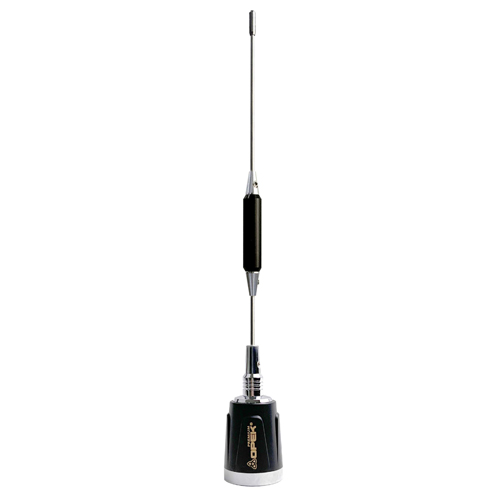

UH-417 UHF MOBILE WIDE BAND COMMUNICATION ANTENNA
(No Tuning Needed)
- NMO Mounting
- Gold Plated Spring Contact
- Solid Brass bushing & Ferrule in Chrome Finish
- Stainless Steel Shock spring (Selected Models ONLY)
- 17-7PH Stainless Steel Whip
Electrical Specifications :
- FREQUENCY : 440 ~ 480MHz
- Bandwidth : 40 MHz
- GAIN : 6.5dBd with ground plane
- Wave : 5/8 over 1/2 wave
- V.S.W.R. LESS THAN 1.7
- IMPEDANCE : 50 OHMS
- POWER CAPACITY : 160W
- CONNECTION : NMO
- LENGTH : 76cm
