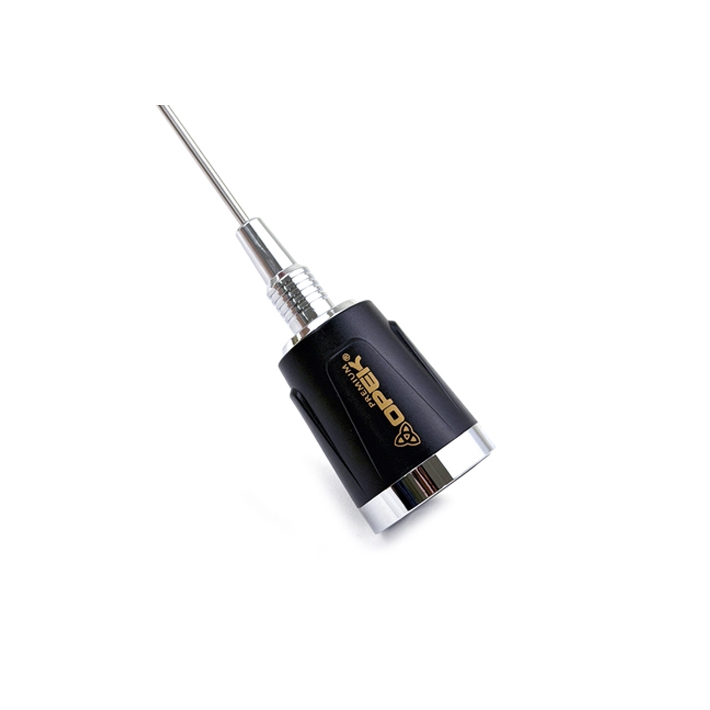

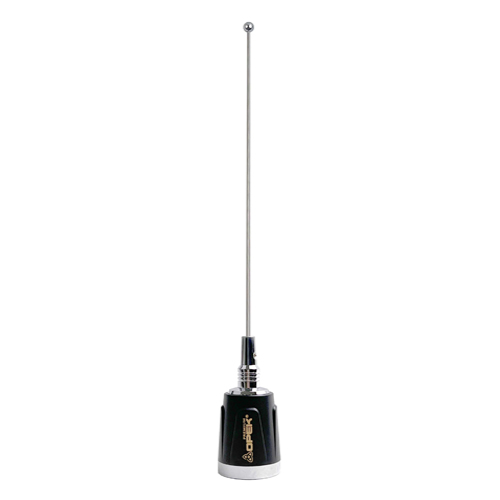

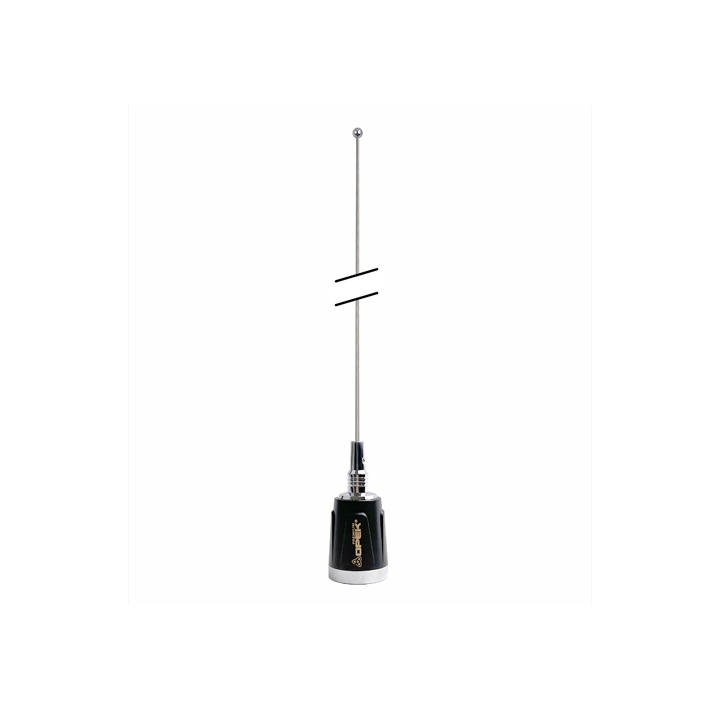

OPEK Premium wideband no tune VHF antennas provides high efficiency and top performance for mobile coverage. Designed with no tuning required and whip fully assembled to minimize workload. Featuring a rugged compact housing and tapered whip with the highest grade stainless steel.
- Wideband no tuning frequencies for seamless operation and ease of installation
- Rugged stainless steel tapered whip, heavy-duty spring for maximum durability and shock absorption

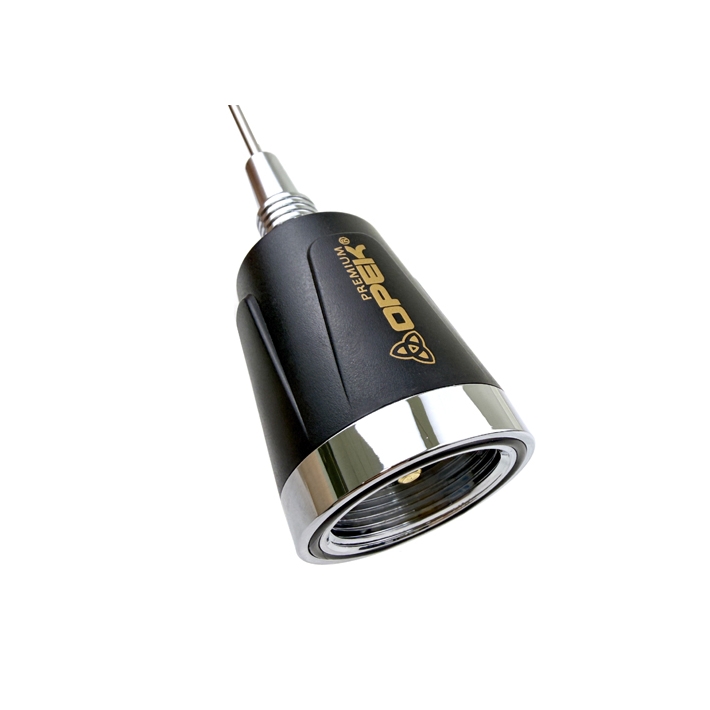

- Thick-wall housing, double seals with O ring and gasket for maximum weatherproofing and environment protection
- Compatible with all 3/4” mounts
- OP-1229W will operate with or without a ground plane
Specifications:
- Frequency Range (MHz): 148 - 174
- Bandwidth (MHz): 26 VHF
- Antenna Wave: ½ Wave
- Antenna Gain (dBi): 4.5 with Ground Plane
- Maximum Power (Watts): 160
- Nominal Impedance (Ω): 50
- VSWR: ≤ 1.90 : 1
- Height (in): 34.8
- Mount: NMO Mount
- Whip: Stainless Steel, 3 mm in diameter
- Spring: No Spring
- Phasing Coil Housing: Molded Polymer Jacket Chrome Plated Bushing
- Base Coil Housing: Molded Polymer Jacket with Copper Nickle and Chrome Plated Busing
